Tapered Conveyor Rollers

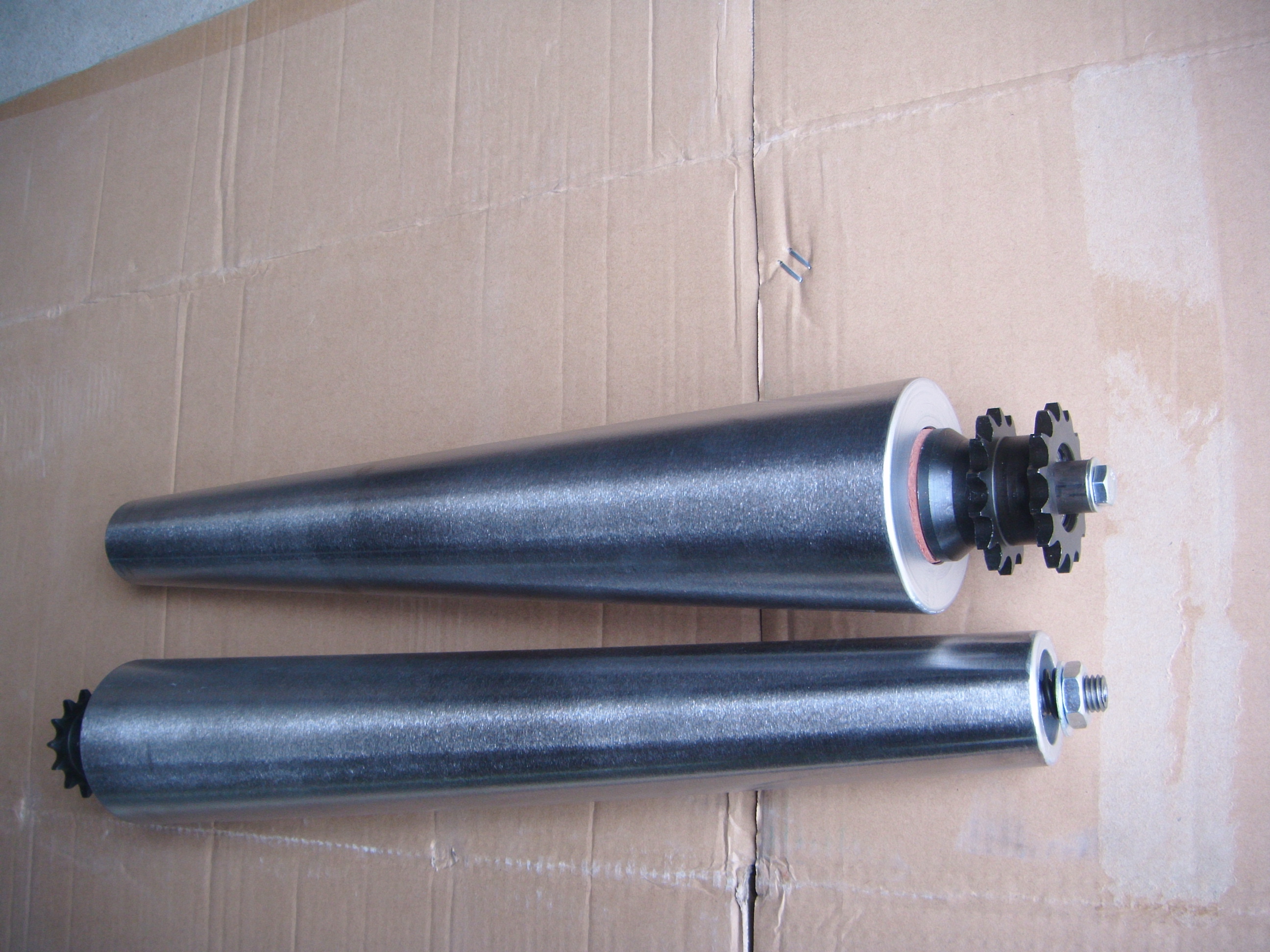

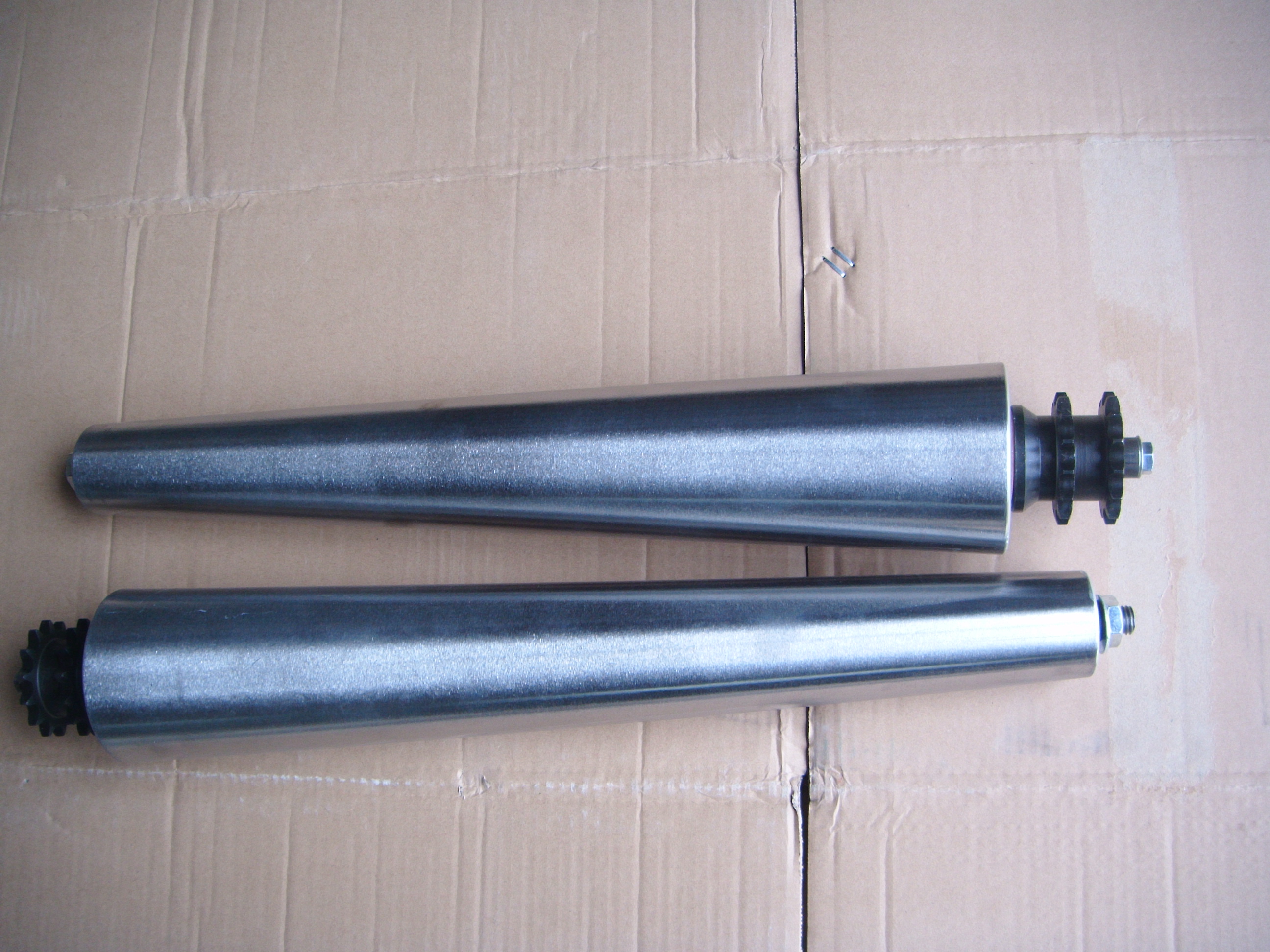

Tapered rollers use a controlled cone profile to accommodate the different travel distances across a conveyor curve. Both non-powered DSZX and chain-driven DSDL tapered configurations are documented in the source product range.
Selection Points
- Non-powered and chain-driven configurations
- Spring-loaded or internally threaded mounting options
- Carbon steel or stainless steel construction options
Technical Specifications
- Barrel length
- 200–1200 mm by model
- Shaft diameter
- 12 mm reference
- Reference taper
- 3.6°
- Small-end diameter
- 42, 50 or 56 mm by model
Typical Use
Curved roller conveyor sectionsMerge and divert layoutsLoad centering and guidance
