Conveyor Rollers
Gravity Conveyor Rollers
Gravity conveyor rollers use pressed bearing housings and standard bearings to provide free, low-noise rotation. The DSW family supports spring-loaded, internally threaded, flat-tenon and through-shaft mounting styles for conveyor frames.
Selection Points
- Spring-loaded, internally threaded, flat-tenon and through-shaft mounting options
- Carbon steel, stainless steel and aluminum barrel choices
- Galvanized, blackened, plastic-coated and cast-rubber surface options
Technical Specifications
- Barrel length
- 80–1500 mm by model
- Shaft diameter
- 12–20 mm by model
- Barrel diameter
- 38–89 mm
- Reference load range
- 40–800 kg by diameter and construction
Typical Use
Gravity conveyor lanesManual material transferLight industry, machinery, electronics, food handling, metallurgy and medical equipment
Related Products

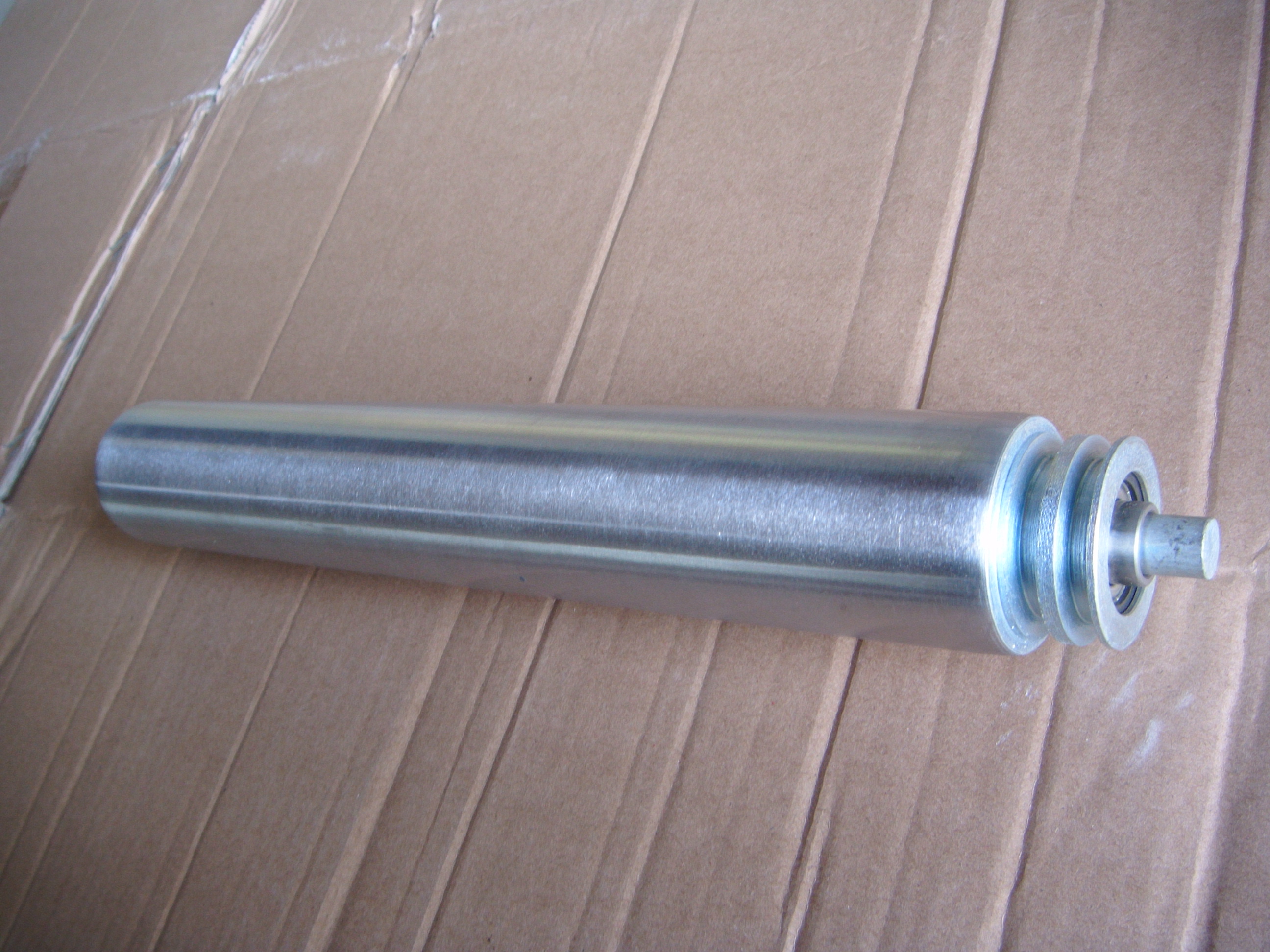

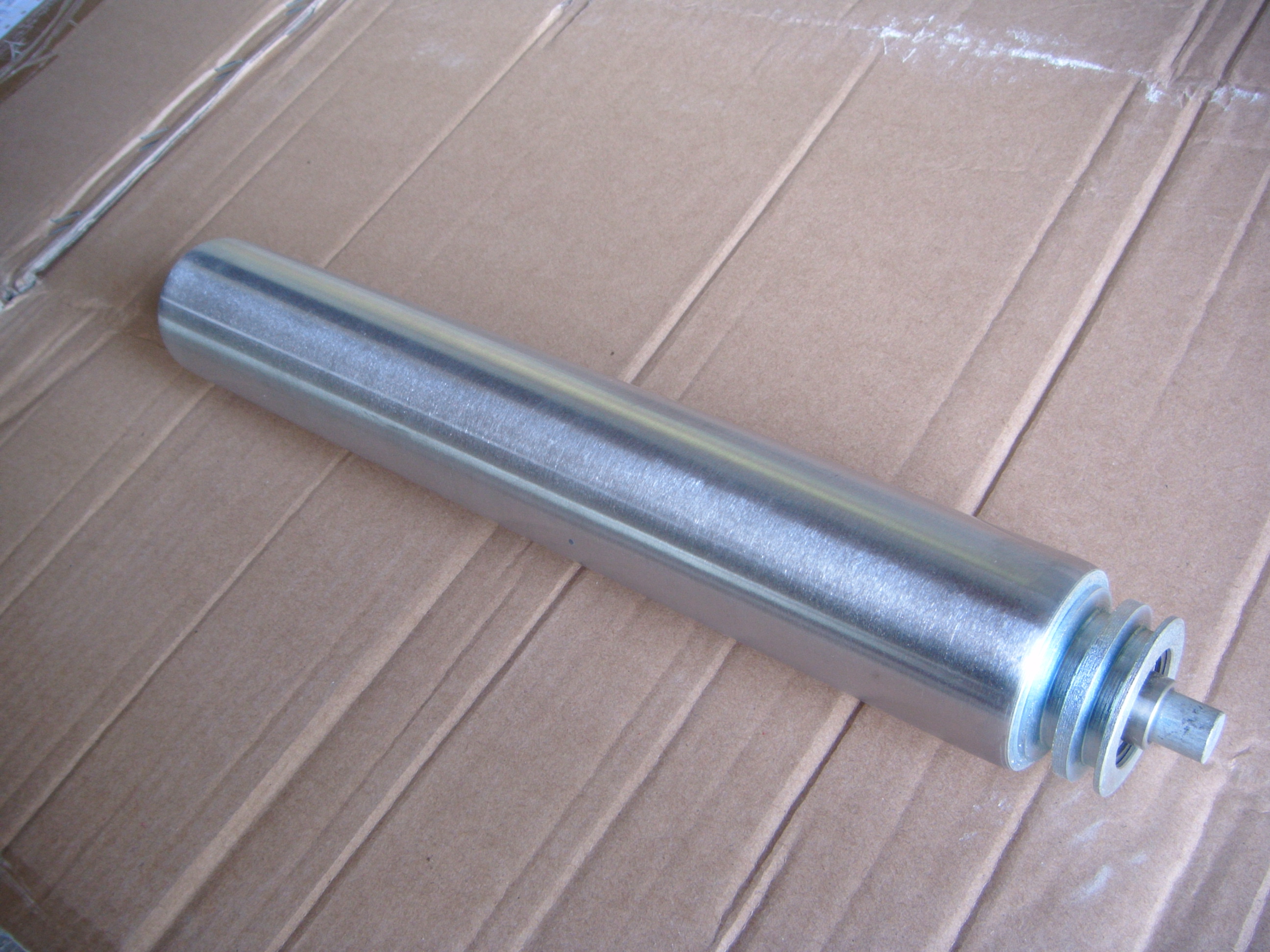

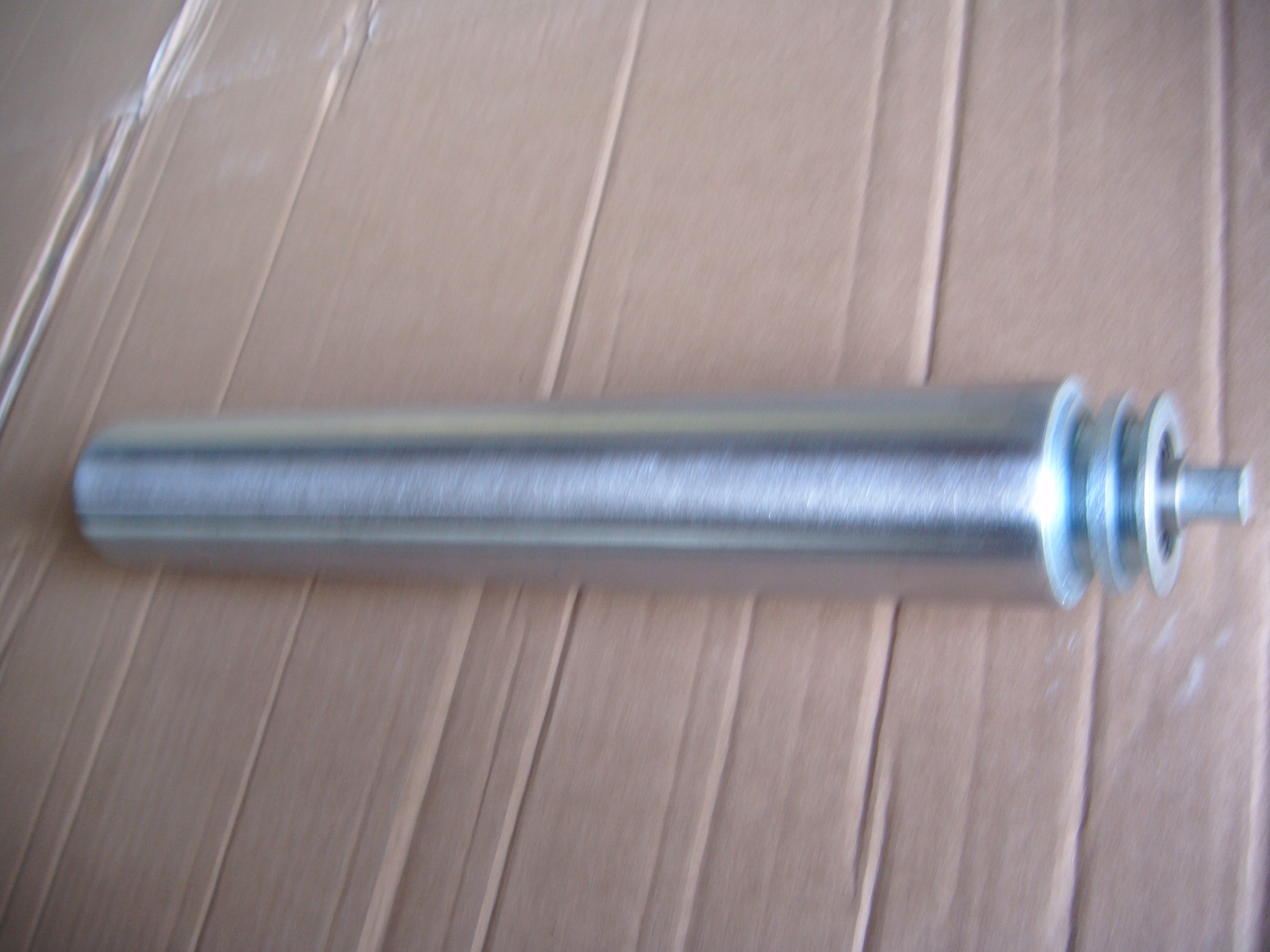

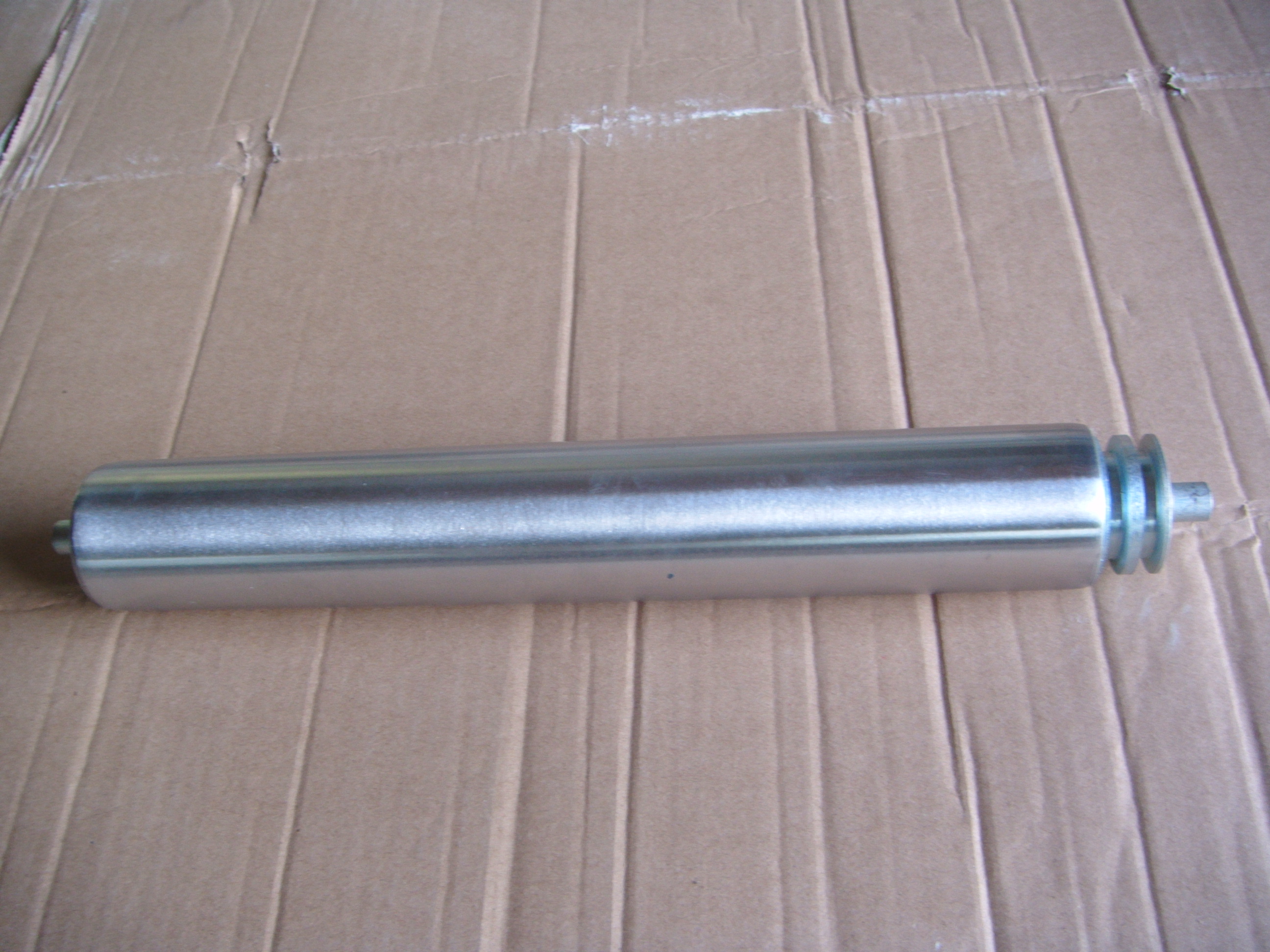

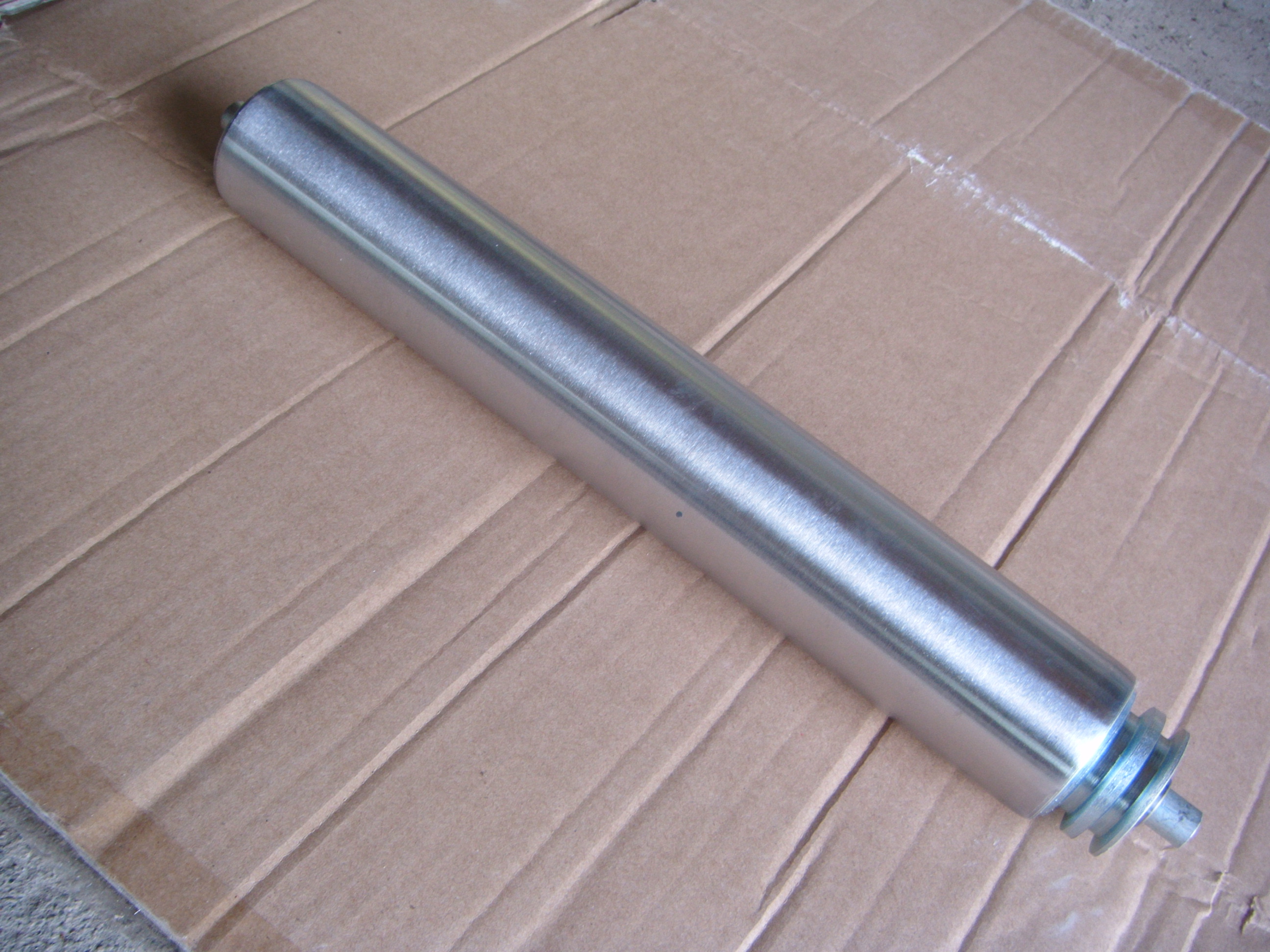

Drive Rollers & Drum MotorsO-Belt Drive Rollers
